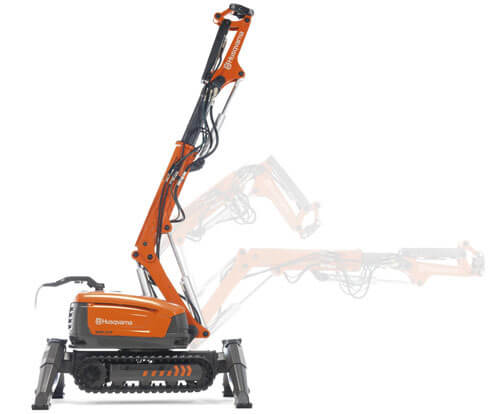

HIGH-PRECISION TELESCOPIC ARM
Extendable arm for long reach and easy positioning of the tool.
DXR 310 is our most powerful remote-controlled demolition robot with a telescopic arm, extending the reach for a flexible set-up. Despite its low weight and compactness it delivers a power of 22 kW, making it ideal for efficient demolition in tough environments. The outriggers are individually controlled and combined with a large footprint provides superior stability which enables high workload. DXR 310 is a versatile machine for both the construction and process industry. Combine it with a variety of tools like hammers or our compact and versatile crushers and steel shearer. For the toughest applications we recommend our additional feature packages. For DXR 300 we offer hydraulic protection, enhanced cooling and heat protection. This enables you to work with the machine in high ambient temperatures and with the tool in a high radiation heat. The packages can be ordered as accessories or installed direct from factory
Extendable arm for long reach and easy positioning of the tool.
Gives good access to confined spaces and high manoeuvrability.
TECHNICAL SPECIFICATION | |
---|---|
Power | 22 kW / 29.5 hp |
Flow 50/ 60 Hz, l/ min | 75 |
System pressure, nominal max, Bar | 200 |
System pressure, increased max, Bar | 250 |
Variable flow to tools and system, l / min | 0-75 |
Pump type | Variable load-sensing axial piston pump |
Terminal | Portable remote control |
Communication | Radio or cable |
Radio | Industrial Bluetooth, class 1 |
Range, radio | Up to 100 m |
Battery | High-capacityLi-ion 1600mAh |
Reach (up/forward) | 5.5/ 5.2 m / 216/ 0 inch |
Control system | Modular, digitalCAN-based PLC |
Automatic breaker lubrication | Yes |
Out-riggers | Included on standard version |
Telescopicarm | Included on standard version |
Weight | 2020 kg / 4321 lbs |
Width, machine body, mm | 780 |
Length, machine body, mm | 2056 (incl. outriggers) |
Height, machine body, mm | 1035 |
With a compact design, only 78 cm in width the machine can access many working locations.
The set-up of the arm system combined with the software gives smooth and precise positioning of the tool.
